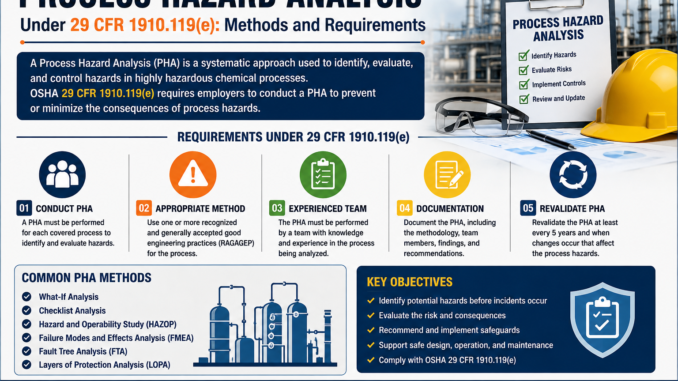

Process Hazard Analysis (PHA) is a structured, team-based examination used to identify, evaluate, and control hazards in a process covered by OSHA Process Safety Management (PSM). 29 CFR 1910.119(e),, employers must use an appropriate analysis method, address specific safety and health issues, involve qualified personnel, and resolve documented recommendations.
The purpose of a process safety information Hazard Analysis is not simply to produce a report. It is to understand how a process can deviate from safe operation, determine what could happen if controls fail, and identify practical safeguards that reduce the likelihood or consequences of a major incident.

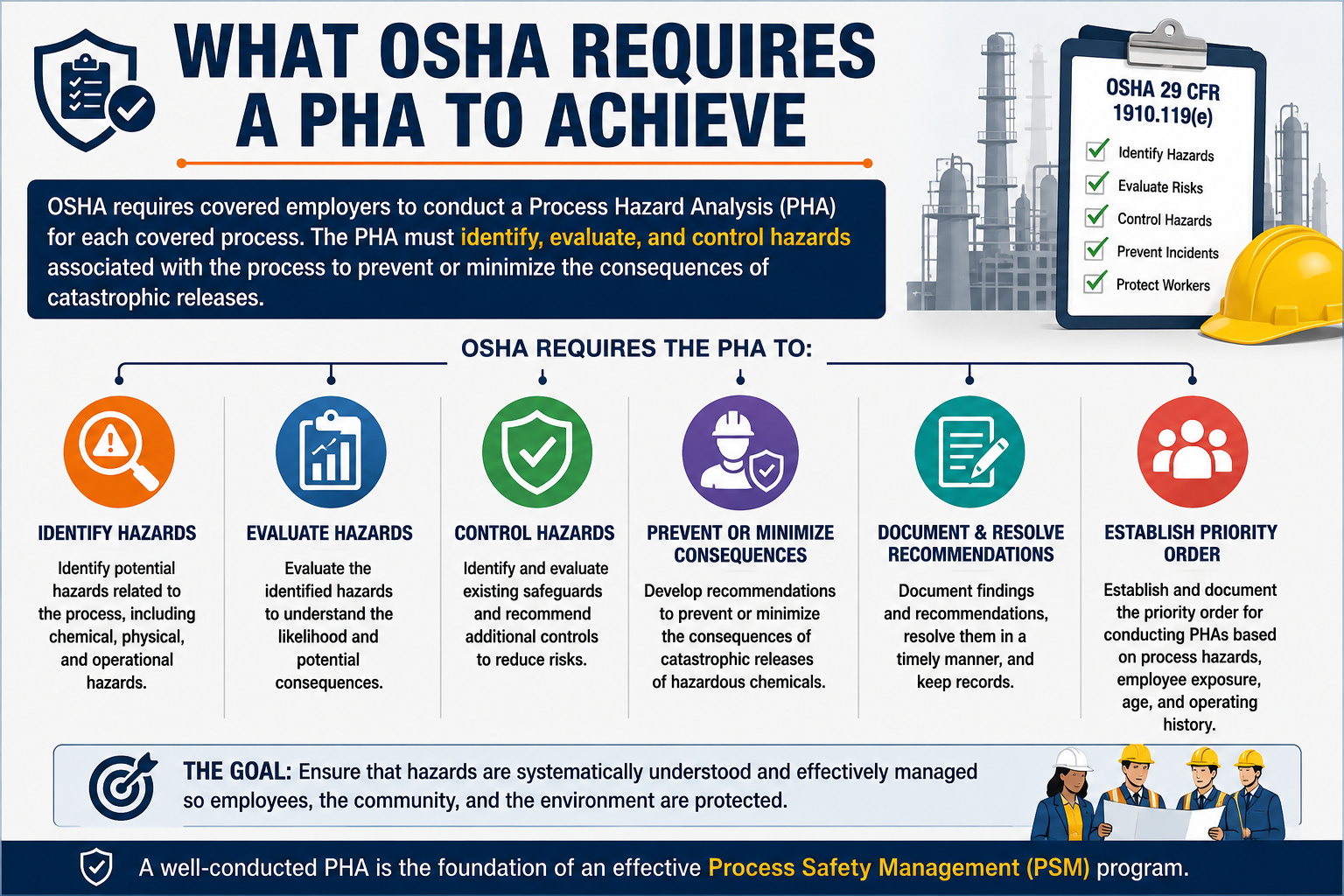

What OSHA Requires a PHA to Achieve
OSHA requires covered employers to conduct a Process Hazard Analysis for each covered process. The analysis must identify, evaluate, and control hazards associated with the process. Employers must also establish and document the priority order for conducting PHAs based on factors such as the extent of process hazards, the number of potentially affected employees, the age of the process, and operating history.
The initial implementation dates contained in the regulation are historical deadlines. For an existing covered process, the important ongoing requirements include maintaining an adequate analysis, resolving recommendations, and completing revalidation at least every five years.
Approved PHA Methodologies
OSHA allows employers to use one or more appropriate methods. The selected method should match the complexity and hazards of the process.
| Method | How It Works | Typical Strength |
|---|---|---|
| What-If | Uses structured “What if?” questions to examine deviations, failures, and errors. | Flexible review of varied scenarios. |
| Checklist | Compares the process against a prepared list of hazards or requirements. | Consistent review for familiar processes. |
| What-If/Checklist | Combines scenario-based questions with systematic checklist coverage. | Good balance of flexibility and completeness. |
| HAZOP | Uses guide words and process parameters to identify deviations at defined nodes. | Detailed analysis of complex processes. |
| FMEA | Examines component failure modes and their effects. | Strong equipment and function focus. |
| Fault Tree Analysis | Works backward from a defined top event to identify combinations of causes. | Logical analysis of specific major events. |
| Equivalent Methodology | Uses another technically defensible method appropriate to the process. | Useful when justified by process characteristics. |
No single method is automatically best. A checklist may be effective for a straightforward system but insufficient for complex interactions. A detailed HAZOP may provide greater depth where process deviations are numerous and interconnected. The employer should document why the selected method or combination is suitable.
Seven Subjects Every PHA Must Address
A compliant Process Hazard Analysis must address seven subjects specified by OSHA:
- Process hazards: Chemical, reaction, fire, explosion, toxicity, pressure, temperature, and other credible hazards.
- Previous incidents: Incidents that had or could reasonably have resulted in catastrophic consequences, including relevant near misses.
- Engineering and administrative controls: Safeguards and their relationships, including detection methods that provide early warning.
- Consequences of control failure: What could happen if a safeguard is unavailable, bypassed, ineffective, or overwhelmed.
- Facility siting: Locations of occupied buildings, equipment, access routes, and other features relevant to potential consequences.
- Human factors: Interface design, workload, procedures, staffing, communication, training, and foreseeable human error.
- Qualitative safety and health effects: The range of possible effects on employees if controls fail.
A strong analysis does more than list safeguards. It examines whether safeguards are available, reliable, independent enough for their intended function, and capable of responding within the required time.
PHA Team Requirements
The Process Hazard Analysis team must have expertise in engineering and process operations. At least one employee must have experience and knowledge specific to the process being evaluated, and at least one team member must understand the methodology being used. One person may satisfy more than one requirement when that person is genuinely qualified.
Operators and maintenance personnel can add important practical knowledge that may not appear in drawings or procedures. They may know about recurring alarms, difficult startups, temporary practices, inaccessible valves, equipment limitations, abnormal operating conditions, or maintenance challenges.
Preparing for the Analysis
Before starting a Process Hazard Analysis, the employer should establish a clear and controlled preparation process:
- Confirm the covered process and analysis boundary.
- Verify that chemical, technology, and equipment Process Safety Information (PSI) is complete and current enough to support the analysis.
- Collect current P&IDs, process flow diagrams, operating procedures, relief-system information, incident history, MOC records, inspection findings, and facility-siting information.
- Select the methodology and define the nodes, systems, or questions that will be evaluated.
- Select team members with appropriate process, operations, engineering, maintenance, and methodology knowledge.
- Establish how assumptions, safeguards, recommendations, responsible owners, and due dates will be documented.
- Review previous PHA findings and determine whether unresolved items could affect the current analysis.
Good preparation helps the team spend its time analyzing hazards instead of correcting basic information gaps.
Managing Findings and Recommendations
The value of a Process Hazard Analysis depends heavily on how recommendations are handled after the team finishes its sessions. OSHA requires employers to establish a system to promptly address findings and recommendations, document the resolution, identify actions to be taken, develop a written completion schedule, complete actions as soon as possible, and communicate relevant actions to affected employees.
Closing an action should require more than changing a status from “open” to “closed.” The record should identify the decision, technical basis, responsible person, completion date, supporting evidence, affected documents, and required training.
When a recommendation is not adopted, the documented resolution should provide a defensible technical basis and explain any alternative controls. If the selected solution changes chemicals, technology, equipment, procedures, or facilities, the change should be screened through the applicable management-of-change process before implementation.
Five-Year Revalidation and Record Retention
OSHA requires each Process Hazard Analysis to be updated and revalidated by a team meeting the requirements of paragraph (e)(4) at least every five years after completion. Revalidation should confirm that the analysis still reflects the current process, equipment, safeguards, operating experience, incident learning, and applicable changes.
A revalidation should not be treated as simply placing a new date on an old report. The team should verify whether assumptions remain valid, whether recommendations were properly resolved, whether changes were captured, and whether new information has introduced additional scenarios.
Employers must retain PHAs, updates or revalidations, and documented recommendation resolutions for the life of the process.
Common PHA Weaknesses
Several problems can reduce the quality of an analysis:
- Starting with incomplete or outdated PSI.
- Selecting a methodology that does not fit process complexity.
- Excluding operators, maintenance personnel, or other relevant expertise.
- Treating alarms as safeguards without examining response time, reliability, and operator action.
- Ignoring facility siting or human factors.
- Recording vague recommendations without owners or completion schedules.
- Closing actions without objective evidence.
- Failing to connect process changes to management of change.
- Performing a paper revalidation that does not evaluate the current process.
A quality review should look for these weaknesses before the final report is approved.
Turning PHA Recommendations Into Verified Risk Reduction
A Process Hazard Analysis becomes valuable when its recommendations lead to verified risk reduction. Each finding should have a unique identifier, responsible owner, target date, and documented status.
Depending on the action, completion evidence may include an approved engineering package, revised drawing, completed work order, updated operating procedure, training record, inspection result, test record, or field verification.
After implementation, the employer should verify that the control performs as intended and has not created a new hazard. This verification helps connect PHA recommendations with mechanical integrity, operating procedures, training, and pre-startup safety review.
Related PSM Requirements
Process Hazard Analysis works as one part of a broader Process Safety Management system. It depends on accurate Process Safety Information, employee participation, management of change, mechanical integrity, operating procedures, training, emergency planning, and pre-startup safety review.
For example, if a recommendation changes equipment or process technology, the organization should determine whether management of change is required. If a new safeguard depends on inspection or testing, mechanical integrity requirements may become important. If a modification changes how operators respond to an abnormal condition, procedures and training may need to be updated.
Conclusion
A well-executed Process Hazard Analysis provides a structured way to identify credible hazards, evaluate consequences, review safeguards, and drive corrective action. Compliance with 29 CFR 1910.119(e) requires more than completing a workshop or producing a report. The employer must use an appropriate method, involve qualified team members, address the required safety subjects, resolve recommendations, document actions, and revalidate the analysis at least every five years.
For safety professionals and Safety Officer test preparation, understanding these requirements is especially important. Focus on the seven required subjects, approved methodologies, team qualifications, recommendation management, and five-year revalidation. These areas demonstrate how OSHA expects employers to turn hazard identification into practical process safety improvement.
