FM-200 Fire Suppression Systems: 2026 Technical Engineering and Compliance Guide

In the high-stakes environments of data centers, telecommunication hubs, and clean rooms, fire protection must be instantaneous and non-destructive. The FM-200 (HFC-227ea) fire suppression system remains a global standard for protecting mission-critical assets where water-based systems would cause more damage than the fire itself. As we progress through 2026, the integration of advanced chemical engineering and strict regulatory compliance under the AIM Act defines the operational landscape for these systems.



1. Chemical Composition and

Core Science

The active agent in an FM-200 system is Heptafluoropropane, represented by the chemical formula CF3CHFCF3. It is suitable for use in fire extinguishing applications, including total flooding and inerting applications. It is a safe, clean, and electrically non-conductive agent that protects people, high-value assets, and the continuity of business operations. It is also highly suitable for use in explosion suppression applications.

Physical Properties:

• Molecular Weight: 170.03
• Boiling Point: -16.34°C
• Critical Temperature: 101.75°C

Gas Specifications:

• Purity by weight (min): 99%
• Moisture ppm (max): 10 ppm
• Acidity (max) (HCl): 0.5 ppm
• Residue % by vol (max): 0.03%

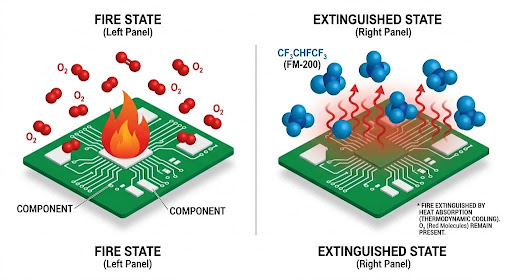

Thermal Mechanism Unlike inert gases that extinguish fire by lowering oxygen levels to below 15% (which can pose risks to personnel), FM-200 is a liquefied compressed gas that operates primarily through thermal energy absorption. The molecules of HFC-227ea possess a high heat capacity. Upon discharge, the agent absorbs heat from the flame front at a molecular level, reducing the temperature of the combustible material below its ignition point. It also disrupts the chemical chain reaction of the fire triangle. This process occurs in 10 seconds or less, preventing the accumulation of toxic smoke and soot.

2. System Applications and Global Approvals

FM-200 has a zero ozone depletion potential and maintains a rigorous suite of global approvals. It is certified by:

• UL (Underwriters Laboratories)
• FM (Factory Mutual Research Corporation)
• SNAP (Significant New Alternatives Policy)
• NFPA 2001
• ISO 14520

Class A & C Applications:

• Computer rooms and data processing centers
• Clean rooms
• Libraries and historical sites
• Telecommunication switch stations
• Semiconductor manufacturing facilities
• Industrial process control rooms

Class B Applications:

• Engine compartments
• Paint lockers
• Petrochemical facilities
• Chemical storage rooms
• Hydrocarbon-based material stores

3. System Architecture and Control Logic

A standard FM-200 installation consists of high-pressure storage cylinders, a distribution pipe network, and an intelligent control suite.

The Control Panel and Detection The “brain” of the system manages the sequence of operations. It utilizes Cross-Zoning Detection to eliminate accidental discharges.

• Zone 1 Activation: Triggers a local alarm and notifies the Building Management System (BMS).
• Zone 2 Activation: Initiates a countdown (typically 30 seconds), shuts down HVAC dampers, and finally triggers the electric actuator on the agent cylinder.

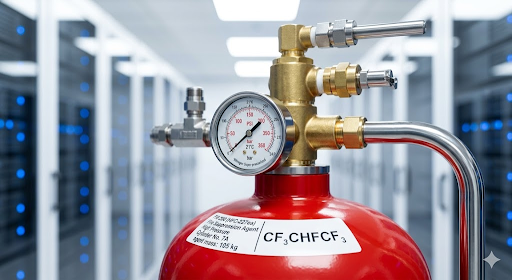

Cylinder Pressure and Super-Pressurization FM-200 is stored as a liquid but requires a propellant to ensure rapid discharge. The cylinders are super-pressurized with Dry Nitrogen (N2) to 360 PSI (24.8 bar) or 600 PSI (41.4 bar) at 21°C. The relationship between pressure and temperature is critical for maintenance. It is governed by the formula:

Technicians monitor the pressure gauge to ensure the P2 value aligns with ambient temperatures T2, as any deviation indicates a potential leak or seal failure.

4. Engineering Calculations: NFPA 2001 Standards

To ensure the fire is extinguished, the system must reach a specific Design Concentration, usually between 7.0% and 8.7% by volume. The total weight (W) of the agent required for a specific room volume is calculated using the NFPA 2001 flooded volume formula:

Definitions:

• W: Weight of clean agent required (kg).
• V: Total hazard volume (M3).
• s: Specific volume of the agent at design temperature (M3/kg) , calculated as s = 0.1269 + 0.0005 • T.
• C: Design concentration (%).

Insufficient agent weight results in a failed extinguishment, while excessive concentration can exceed the NOAEL (No Observable Adverse Effect Level) for humans, which is 9.0%.

5. Room Integrity and the “Hold Time” Formula

Because FM-200 is heavier than air, it tends to leak out of lower openings in a room. To ensure the fire does not re-ignite, the agent must remain in the room for a “Hold Time” of at least 10 minutes. The leakage rate and descending interface are calculated using:

Where:

• T : Hold time (seconds).
• AL : Equivalent Leakage Area.
• H : Height of the room.
• Hd : Height of the highest protected equipment.

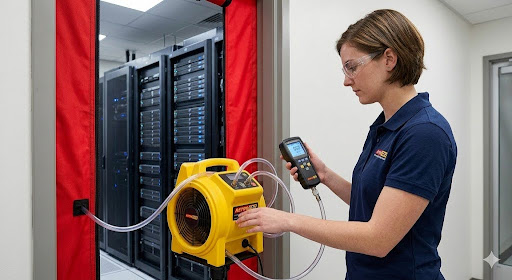

Ensuring proper fire-stopping and conducting annual Door Fan Integrity Tests are mandatory to satisfy this equation.

6. 2026 Environmental and Regulatory Status

In 2026, FM-200 remains a compliant and highly effective clean agent, though it is managed under the AIM Act Phase-down.

Environmental Metrics

• Ozone Depletion Potential (ODP): 0
• Global Warming Potential (GWP): 3,220
• Atmospheric Lifetime: 34.2 Years

While virgin (newly manufactured) FM-200 is subject to production quotas, the use of Reclaimed FM-200 is the standard for 2026. Reclaimed agent is purified to AHRI 700 specifications, ensuring it meets the same purity standards as virgin gas while adhering to sustainability mandates.

7. Maintenance and Safety Requirements

To ensure system readiness and personnel safety, the following protocols are mandatory under NFPA 2001 and local fire codes:

Semi-Annual Maintenance

• Cylinder Weight Verification: If the weight loss exceeds 5% or pressure loss exceeds 10%, the cylinder must be refilled or replaced.
• Actuator Testing: Testing the solenoid valves and manual pull stations without discharging the agent.

Safety Features

• Abort Switches: Manually delays the discharge if a false alarm is identified during the pre-discharge countdown.
• Discharge Pressure Switch: Automatically shuts down server power or air handling units upon agent release.
• Warning Signs: Clearly labeled “FM-200 Discharge” lights and sirens must be present at every entrance to the protected space.

8. Comparison of Gaseous Agents

Property	FM-200 (HFC-227ea)	Novec 1230 (FK-5-1-12)	Inert Gas (IG-55/541)
Chemical Formula	CF3CHFCF3	CF3CF2C(O)CF(CF3)2	N2/Ar
Storage State	Liquefied Gas	Liquid	Compressed Gas
Space Required	Minimal	Low	High (Many Cylinders)
Hold Time	Excellent	Excellent	Moderate
2026 Availability	High (Reclaimed)	High (Virgin)	High

9. Demerits and Limitations of FM-200

While highly effective, facility managers must weigh several operational and environmental drawbacks before committing to or expanding an FM-200 system in 2026:

• High Global Warming Potential (GWP): With a GWP of 3,220, FM-200 is heavily targeted by global environmental regulations like the AIM Act and EU F-Gas regulations. This makes it less favorable for companies strictly adhering to modern ESG (Environmental, Social, and Governance) targets.
• Cost Volatility of Virgin Agent: Due to mandated phase-downs, the production of new (virgin) HFC-227ea is restricted. This has led to unpredictable and often inflated pricing for system refills, making operators highly reliant on the reclaimed agent market.
• Strict Room Integrity Requirements: FM-200 is a “Total Flooding” agent. If the protected room is not perfectly sealed (e.g., unsealed cable penetrations, faulty HVAC dampers, or porous drop ceilings), the gas will escape before the 10-minute hold time is achieved, risking fire re-ignition.

• Toxic Byproducts upon Thermal Decomposition: If the system is delayed and the FM-200 gas is exposed to temperatures exceeding 700°C (1300°F) for an extended period, it chemically breaks down to produce Hydrogen Fluoride (HF). HF is a highly toxic and corrosive acid gas, emphasizing the need for ultra-fast fire detection to extinguish the flame before it grows too hot.

10. Conclusion

FM-200 fire suppression systems represent a sophisticated balance of chemical potency and hardware reliability. By adhering to the mathematical precision of NFPA 2001 calculations and maintaining the structural integrity of the protected volume, facility managers can achieve near-total protection of their electronic infrastructure. In 2026, the focus remains on rigorous maintenance and the transition to reclaimed agent to ensure both fire safety and environmental compliance.
